Innovative Design of Export Integrated Wastewater Treatment Equipment

随着全球环保标准的不断提升和各国水务基础设施建设的加速推进，出口一体化污水处理设备的技术创新已成为中国环保装备企业赢得国际市场竞争的关键。山东中侨启迪环保装备有限公司作为一体化污水处理设备领域的领军企业，在出口产品设计上持续突破，通过工艺集成、材料创新和智能化运维三大维度构建了独特的核心竞争力。

在工艺集成方面，中侨启迪针对不同国家和地区的污水水质特征，开发了多工艺耦合的一体化设备平台。以公司核心产品MBR一体化污水处理设备为例，该设备采用"预处理+A²O+MBR膜+消毒"工艺路线，将格栅、调节池、厌氧池、缺氧池、好氧池、MBR膜池和消毒单元高度集成于一体。其中，MBR膜组件采用PVDF材质，膜孔径0.1微米，可有效截留悬浮物、胶体和大部分细菌，出水SS低于5mg/L，BOD₅低于10mg/L，浊度低于1NTU，直接满足城市杂用水回用标准。公司自有MBR膜封装车间2500平方米，实现膜组件自产自给，在保证质量的同时大幅降低了设备成本。

在新材料应用方面，中侨启迪开创性地将PP（聚丙烯）新材料引入一体化污水处理设备的罐体制造。传统碳钢和不锈钢罐体在海外项目中面临运输笨重、腐蚀风险高、维护成本大等问题。中侨启迪的一体成型PP新材料罐体生产线，采用进口PP板材经一体成型工艺制造，具有耐腐蚀、重量轻、安装便捷、使用寿命长达20年以上等优势。PP罐体本身的化学惰性使其能够适应各种复杂水质，无需额外的防腐处理，特别适合东南亚高温高湿和非洲干旱地区等严苛环境。同时，公司在好氧池中投加自产MBBR填料，构建"活性污泥+MBBR"复合生化系统，填料上的生物膜提供了稳定的硝化菌群，在低负荷条件下仍能保证出水氨氮稳定低于5mg/L。

在智能化运维方面，中侨启迪自主研发的"混沌云"物联网平台是出口一体化污水处理设备创新设计的重要亮点。该平台为每台出口设备配置了完整的传感监测系统，涵盖进水流量计、液位变送器、溶解氧仪、pH计、污泥浓度计等核心仪表，数据通过4G/5G网络实时上传至云端服务器。客户和运维团队可通过PC端或移动端查看设备实时运行数据、历史趋势曲线和报警记录。当某项参数超出预设阈值时，系统自动推送报警信息，工程师可远程进行参数调整和故障排查，甚至在授权情况下直接修改PLC运行参数。这一创新使远在万里之外的出口设备获得了等同于本地项目的运维响应速度。

在设备形态创新方面，中侨启迪推出了集装箱式一体化污水处理设备，这是专为出口场景设计的突破性产品。设备主体集成在标准40英尺集装箱内部，集装箱本身就是国际标准运输单元，海运过程中设备在箱内固定牢靠，到港后无需特殊卸载设备即可拖运至现场。集装箱外壳为设备提供了可靠的运输保护和防风沙能力，到现场后打开箱门即可接管通电运行，大幅减少了现场施工工作量。针对中东地区50℃以上极端高温环境，公司在电气控制柜中配备了工业级空调冷却系统，确保PLC和变频器等核心器件正常运行；进风口加装二级过滤装置，有效阻挡沙尘侵入。

在排放标准适配方面，中侨启迪技术团队对每个出口项目都深入研究当地排放标准。美国EPA标准要求BOD和TSS低于30mg/L并需通过毒性测试；中东地区标准对COD限值相对宽松但对卫生学指标严格；东南亚国家标准介于中国一级A和一级B之间；非洲部分国家尚无完善标准体系，需参考WHO指南设定目标值。公司根据不同标准精准匹配工艺参数，既避免"超标浪费"也杜绝"勉强达标"。

中侨启迪的出口一体化污水处理设备创新设计，已在美国、沙特、墨西哥、越南、菲律宾、马来西亚、埃塞俄比亚等20余个国家和地区成功落地2000余个项目，甚至获得了联合国组织的采购认可。未来，公司将继续深化技术创新，推动中国环保装备在全球市场的品牌升级，以"中国智造"的力量助力全球水环境治理。

Innovative Design of Export Integrated Wastewater Treatment Equipment

With the continuous upgrading of global environmental standards and the accelerated construction of water infrastructure worldwide, technological innovation in export integrated wastewater treatment equipment has become the key for Chinese environmental protection equipment enterprises to win international market competition. Shandong Zhongqiao Enlightenment Environmental Protection Equipment Co., Ltd., as a leading enterprise in the field of integrated wastewater treatment equipment, has continuously broken through in export product design, building unique core competitiveness through three dimensions: process integration, material innovation, and intelligent operation and maintenance.

In terms of process integration, Zhongqiao Enlightenment has developed a multi-process coupled integrated equipment platform tailored to the wastewater characteristics of different countries and regions. Taking the company's core product, the MBR integrated wastewater treatment equipment, as an example, the equipment adopts a "pretreatment + A²O + MBR membrane + disinfection" process route, highly integrating the screen, equalization tank, anaerobic tank, anoxic tank, aerobic tank, MBR membrane tank, and disinfection unit into a single unit. The MBR membrane modules use PVDF material with a pore size of 0.1 microns, effectively retaining suspended solids, colloids, and most bacteria. The effluent achieves SS below 5 mg/L, BOD₅ below 10 mg/L, and turbidity below 1 NTU, directly meeting urban reclaimed water standards. The company's own 2,500-square-meter MBR membrane packaging workshop enables self-sufficiency in membrane module production, significantly reducing equipment costs while ensuring quality.

In terms of new material application, Zhongqiao Enlightenment pioneered the introduction of PP (polypropylene) new materials into the tank manufacturing of integrated wastewater treatment equipment. Traditional carbon steel and stainless steel tanks face challenges in overseas projects such as heavy transportation, high corrosion risk, and high maintenance costs. Zhongqiao Enlightenment's integrated PP tank production line uses imported PP sheets manufactured through an integral molding process, offering advantages including corrosion resistance, light weight, convenient installation, and a service life of over 20 years. The chemical inertness of PP tanks enables them to adapt to various complex water qualities without additional anti-corrosion treatment, making them particularly suitable for harsh environments such as the high-temperature and high-humidity conditions of Southeast Asia and the arid regions of Africa. Meanwhile, the company introduces self-produced MBBR media into the aerobic tank to construct a composite "activated sludge + MBBR" biochemical system. The biofilm on the media provides a stable nitrifying bacterial population, ensuring effluent ammonia nitrogen consistently below 5 mg/L even under low-load conditions.

In terms of intelligent operation and maintenance, Zhongqiao Enlightenment's independently developed "Chaos Cloud" IoT platform is a major highlight of the innovative design of export integrated wastewater treatment equipment. The platform configures each export unit with a complete sensing and monitoring system, covering core instruments such as inlet flow meters, level transmitters, dissolved oxygen meters, pH meters, and sludge concentration meters. Data is uploaded in real time to cloud servers via 4G/5G networks. Clients and O&M teams can view real-time equipment operating data, historical trend curves, and alarm records through PC or mobile terminals. When a parameter exceeds preset thresholds, the system automatically pushes alarm notifications, and engineers can remotely perform parameter adjustments and troubleshooting, or even directly modify PLC operating parameters with authorization. This innovation enables export equipment thousands of miles away to receive the same O&M response speed as local projects.

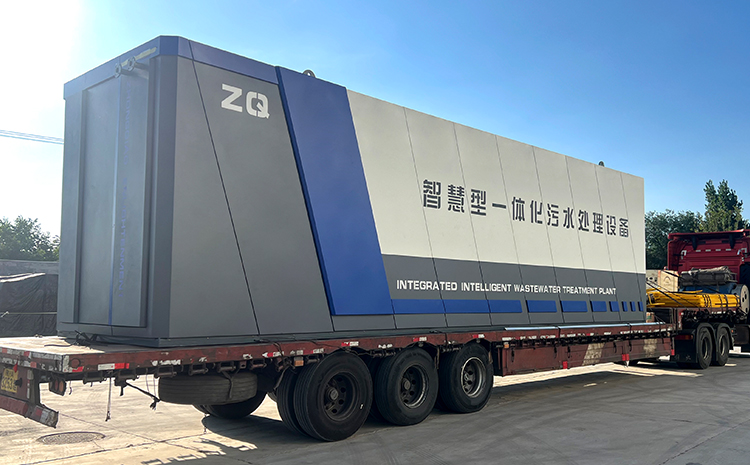

In terms of equipment form innovation, Zhongqiao Enlightenment has launched containerized integrated wastewater treatment equipment, a breakthrough product specifically designed for export scenarios. The main equipment is integrated inside a standard 40-foot container, which itself serves as an internationally standardized transport unit. During sea freight, the equipment is securely fixed inside the container, and upon arrival at the port, it can be towed to the site without special unloading equipment. The container shell provides reliable transport protection and sandstorm resistance for the equipment. Once on-site, operators only need to open the container doors, connect pipelines and power supply, and commission the system, drastically reducing on-site construction workload. For the extreme high-temperature environment of over 50°C in the Middle East, the company equips the electrical control cabinet with an industrial-grade air-conditioning cooling system to ensure normal operation of core components such as PLCs and VFDs. A two-stage filtration system is installed at the air intake to effectively block sand and dust ingress.

In terms of discharge standard adaptation, Zhongqiao Enlightenment's technical team conducts in-depth research on local discharge standards for each export project. The US EPA requires BOD and TSS below 30 mg/L with mandatory toxicity testing; Middle Eastern standards adopt relatively lenient COD thresholds but strict hygienic indicators; Southeast Asian standards fall between China's Grade 1A and Grade 1B; some African countries lack mature standard systems, requiring reference to WHO guidelines. The company precisely matches process parameters to different standards, avoiding both "excessive over-treatment" and "marginal compliance."

Zhongqiao Enlightenment's innovative design of export integrated wastewater treatment equipment has been successfully deployed in over 2,000 projects across more than 20 countries and regions including the United States, Saudi Arabia, Mexico, Vietnam, the Philippines, Malaysia, and Ethiopia, and has even secured procurement accreditation from United Nations agencies. Looking ahead, the company will continue to deepen technological innovation, drive the brand upgrade of Chinese environmental protection equipment in the global market, and contribute the power of "Intelligent Manufacturing in China" to global water environment governance.
